Commercial Nanofiltration -
Membrane Technology
Nano filtration is a pressure
related process during which separation takes place based on
molecule size. Nano filtration is mainly applied in drinking
water purification process steps, such as water softening, decolouring
and micro pollutant removal. Nano filtration is also applied
in Agricultural and Business applications in the removal of specific
components, such as coloring agents, sugars, dyes, surfactants,
minerals, divalent salts, bacteria, proteins, particles, dyes,
and total dissolved solids.
Because nano filtration uses
less fine membranes, the feed pressure of the NF system is generally
lower compared to reverse
osmosis systems. Also the fouling rate is lower compared
to RO systems.
Nanofiltration (NF) is not as
fine a filtration process as
reverse osmosis (RO), since the membrane pores are typically
much larger. However, NF does not require the same energy to
perform the separation. The differences between the two types
of membrane are subtle, but distinct. Most notably, NF can reject
only ions with more than one negative charge, such as sulfate
or phosphate, while passing single charged ions.
Nanofiltration systems are used
for water filtration, dairy and cattle farming, business, water
softening, food, pharmaceutical, municipal, lake, river, and
well water applications.
Nanofiltration Benefits
- Lower operating costs
- Lower energy costs
- Lower discharge, Less waste
water than RO
- reduces salt (TDS) content of
slightly brackish water
- reduces pesticides, VOC's (organic
chemicals)
- reduces heavy metals
- reduces nitrates and sulfates
- reduces color, tannins, and
turbidity
- softens hard water
- Chemical-Free - i.e. does not
use salts or chemicals
If a higher purity water is needed
or a greater impurity rejection percentage is required please
see our Reverse Osmosis and Commercial
Reverse Osmosis. Reverse osmosis has proven to be the most
efficient means of removing up to 99% of total dissolved solids.
|
Comparison Chart |
Reverse Osmosis |
Nano Filtration |
|
Filtration level
(micron) |
0.0001 to 0.001 |
0.0008 to 0.01 |
|
Size of viruses
(micron) |
0.005 to 0.01 |
0.005 to 0.01 |
|
Size of bacteria
(micron) |
0.2 to 10 |
0.2 to 10 |
|
Filtration of viruses
and bacteria |
YES |
YES |
|
Typical recovery
(%) |
50% |
75% |
|
Typical TDS reduction
(%) |
99% |
70% |
|
Typical points
of pH reduction |
2+ |
Less than 1 |
|
Need for pH correction
of permeate |
Yes, 50% of time |
No, 90% of time |
|
Residual water
hardness (grains) |
0 |
1 |
|
Maximum raw TDS without
special design considerations (PPM) |
2,000 |
1,500 |
|
Average high pressure
(PSI) |
150 |
90 |
Model "WH-NANO" NANOFILTRATION WATER TREATMENT
Small, mid-size and large skid-mount
nanofiltration plants for your business, manufacturing facility
and plant.
WH-NANO Packaged Skid Mount Nanofiltration
unit is plumbed and prewired in most cases with one inlet connection,
one drain connection, one water use connection, and one electrical
connection to allow for fast hassle free installation.Power requirements
are 120 volt 1 phase 60 Hz or 230 volt single or three phase
power source at customer option. User Friendly - Easy Service.
From the delivery of the equipment to your facility to the set
up and use of water - In hours not days!
New "Touch
Screen PLC" A Must Have Now Included! All WH-NANO Series commercial Nano Filtration
systems include a "Touch Screen" user friendly programmable
logic controller (PLC), electronic sensors can monitor all vital
functions of the system including flow, pressure, tank levels,
water quality, filter condition, membrane condition, and electrical
supply. The control system automatically responds to changes
in these variables, initiating the proper response to virtually
any operating condition. A user friendly centrally-located touch
screen operator interface is provided to simplify system control.
The PLC displays all operating conditions and tells you what
the unit is doing at any time. Perfect for serviceman, maintenance
person, or do it yourselfer.
- WH-NANO Series For
Use On Municipal Water And Well Water Sources
-

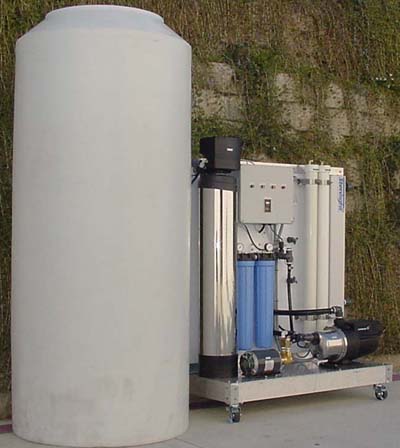

- (appearances may vary,
300gal. storage tank shown)
- WH-NANO Series Standard Features
- Chemical Free Water Solutions
Complete WH-NANO Series Commercial
Skid-Mount Nano Filtration includes:
- All components (excluding
storage tank) located and
contained on our beautifully polished skid mount aluminum diamond
plate platform with wheels - for easy positioning.
- Approx. System dimensions: 25"W
x 48"L x 61" high Designed to fit through most standard
door ways.
- Includes the chemical and salt
free Maxi-Cure Nano pre-treatment system. The Maxi-Cure provides
protection for the NF membrane against iron, manganese, hydrogen
sulfide gas, suspended solids, and more.
- Automatic Flush on start up
- Fast flushes membrane each time the unit starts.
- Includes a "Touch Screen"
programmable logic controller (PLC), electronic sensors can
monitor all vital functions of the system including flow, pressure,
tank levels, water quality, filter condition, membrane condition,
and electrical supply. The control system automatically responds
to changes in these variables, initiating the proper response
to virtually any operating condition. A user friendly easy to
read (English Only) centrally-located operator interface is provided
to simplify system control. The PLC displays all operating conditions
and tells you what the unit is doing at any time. Perfect for
serviceman, maintenance person, or do it yourselfer.
- Includes 1- 20" BB sediment
prefilter to remove dirt and sediment
- Includes 1- 20" BB carbon
prefilter
- Includes Thin Film Composite
Membrane. Rejection rate (66% +). High feed water recovery
rate (75% +).
- Includes Liquid Filled Pressure
Gauge.-Measures system's operating pressure.
- Includes Low Pressure Switch.
- Includes Prefilter Gauge.
Measures pressure drop & indicates filter change required.
- Includes High Pressure Switch.
Safety mechanism to aviod equipment damage.
- Includes TDS monitor with alarm
and four status lights : a) power light on, b)
low pressure light, c) storage tank is full light, d)
high pressure light, e) TDS meter has a light that glows
if TDS is above a set limit
- Includes 1- 35" dia. x
81" ht. 300 gallon storage tank. For ease of handling and
ability to get through doors we use a multiple array of tanks
for larger households.
- Includes 3 electronic float
switches for storage tank - Top tank for shut-off, one 1Ft. lower
for turn on, and one at bottom for control of re-press. pump.
- Includes 12gpm @ 50psi fully
automatic electric pump (constant pressure) re-pressure system
- Draws water out of the storage tank.
- Includes a chemical free ultraviolet
UV disinfection system for bacteria and viruses. This is used
as a final polishing filter.
- Each skid mount reverse osmosis
is fully assembled and tested before it leaves the plant.
- For optimum WH-NANO Series performance
customers must have at least 7gpm @ 30psi available. Note: Our
WH-NANO Series contains complete pretreatment for chlorine and
hard water (calcium) typically associated with municipal water
sources. If WH-NANO is to be used on well water we offer the
following guidelines: Operating Parameters: Max TDS-1500ppm,
Total iron
is less than 5ppm, Manganese is less than 3ppm, Water hardness
below 25gpg,
pH 6.5 -8.5,
No iron bacteria.
- FREE SHIPPING
ON ALL WH-NANO SKID COMMERCIAL REVERSE OSMOSIS WITHIN THE CONTINENTAL
UNITED STATES.
- OVERSEAS SHIPPING
AVAILABLE OR HAVE YOUR FREIGHT FORWARDER PICK-UP
- NO CHARGE FOR
EXPORT CRATING
- 50 Hz AND CUSTOM
VOLTAGES AVAILABLE
- WH-NANO Skid Series Commercial
NANO Filtration Price
Guide
|
Model # |
Description |
Price |
|
WH-NANO-1500 |
- Complete skid
mount 1500 gallon per day nano filtration system
includes standard features
and
- 1 - 35" dia x 80"
ht 300
gallon storage tank
|
- Price
$14,950.00
- Toll Free 1-877-788-8387
- Free
Shipping Available
- E-mail
|
|
WH-NANO-3000 |
- Complete skid mount
3000 gallon per day nano filtration system
includes standard features
and
- 1 - 35" dia x 80"
ht 300
gallon storage tank
|
- Price
$17,925.00
- Toll Free 1-877-788-8387
- Free
Shipping Available
- E-mail
|
|
WH-NANO-6000 |
-
- Complete skid mount
6000 gallon per day nano filtration system
includes standard features
and
- 1 - 35" dia x 80"
ht 300
gallon storage tank
|
- Price
$19,925.00
- Toll Free 1-877-788-8387
- Free
Shipping Available
- E-mail
|
|
WH-NANO-9000 |
- Complete skid mount
9000 gallon per day nano filtration system
includes standard features
and
- 1 - 35" dia x 80"
ht 300
gallon storage tank
|
- Price
$24,925.00
- Toll Free 1-877-788-8387
- Free
Shipping Available
- E-mail
|
|
WH-NANO-12,000 |
-
- Complete skid mount
12,000 gallon per day nano filtration system
includes standard features
and
- 1 - 35" dia x 80"
ht 300
gallon storage tank
|
- Price
$28,925.00
- Toll Free 1-877-788-8387
- Free
Shipping Available
- E-mail
|
|
WH-NANO-15,000 |
-
- Complete skid mount
15,000 gallon per day nano filtration system
includes standard features
and
- 1 - 35" dia x 80"
ht 300
gallon storage tank
|
- Price
$36,925.00
- Toll Free 1-877-788-8387
- Free
Shipping Available
- E-mail
|
|
WH-NANO-20,000 |
-
- Complete skid mount
20,000 gallon per day nano filtration system
includes standard features
and
- 1 - 35" dia x 80"
ht 300
gallon storage tank
|
- Price
$41,925.00
- Toll Free 1-877-788-8387
- Free
Shipping Available
- E-mail
|
|
WH-NANO-25,000 |
-
- Complete skid mount
25,000 gallon per day nano filtration system
includes standard features
and
- 1 - 35" dia x 80"
ht 300
gallon storage tank
|
- Price
$50,925.00
- Toll Free 1-877-788-8387
- Free
Shipping Available
- E-mail
|
- If higher purity water is needed
or a greater impurity rejection percentage is required please
see our Reverse Osmosis and Commercial
Reverse Osmosis.
-
- Storage Tank Options
- 35" dia x
81" ht. 300 Gallon Storage Tank
- (We Have Already Included
This Tank As A Standard Feature)
|
Price:
$375.00ea + Shipping |
|
23" dia x 64"
ht. 100 Gallon Storage Tank |
Price:
$325.00ea + Shipping |
|
23" dia x 76"
ht. 100 Gallon Storage Tank |
Price:
$355.00ea + Shipping |
|
46"
dia x 76" ht. 500 Gallon Storage Tank |
Price:
$575.00ea + Shipping |
|
64"
dia x 81" ht. 1000 Gallon Storage Tank |
- Price: $1,095.00ea + Shipping
|
|
102" dia x
151" ht. 5000 Gallon Storage Tank |
- Price: $5,010.00ea + Shipping
|
- Shipping and
Exporting is our specialty. To ensure a safe and proper delivery
for your new water treatment equipment we offer export crating
and packaging for all overseas orders. We can use your freight
forwarder, ship freight collect or we can find the best shipping
rates from our facility. For our domestic U.S. orders we offer
free shipping any where in the continental US.
We pride ourselves on our workmanship
and our attention to detail.To ensure our customers that our
systems will perform to their utmost potential WE RECOMMEND
FAXING AN EXISTING WATER ANALYSIS OR HAVING YOUR WATER TESTED
TO DETERMINE WHICH IS THE BEST SYSTEM FOR YOUR WATER CHEMISTRY.
Once that recommendation is made, you can have complete faith
that your system will work at its peak potential over a long
period of time..
Customer Assurance - If you
have a current water analysis report, please fax it to us @ 760-896-6999, E-mail
or send at least a 16oz sample of unfiltered water in a leak
proof bottle to:
- RainDance Water Systems Attn:
WH-NANO Series
- 2575 Fortune Way Suite J
- Vista, Ca. 92083
Once your feed water has been
analyzed, we will provide you with a firm system recommendation.
- Customer Assurance - RainDance
Water Systems has become a stable and reliable name in the water
treatment industry. We take great measures to assure our customers
the best quality, dependability, service, and reliability. Why
Raindance Water Systems? We offer the following:
- Member Ramona Chamber Of Commerce
- Secure online ordering on most
systems or call toll free 1-877-788-8387
- Water Equipment Warranty
- We know reverse osmosis! Quality
Equipment - Knowledge - Superior Customer Service
- Technical and Installation support
available.
- About RainDance Water Systems:
RainDance Water Systems can assist you in all of your residential
and commercial water treatment needs. There's no need to go anywhere
else. With over 80 years of combined experience in the water
treatment business our resources can quickly & accurately
answer all of your water filtration questions. We offer proven
systems for your residential and commercial water treatment applications.
Residential water treatment can be found on our main company
website @ www.raindancewatersystems.com
To ensure our customers receive the most economical, dependable,
and environmentally friendly solutions, our resources include
engineers and water treatment professionals who utilize virtually
all known water treatment processes. This would include: commercial reverse osmosis,
sea water desalination filters,
water store equipment,
water softening, iron
filters, complete well water filtration, city water filtration,
commercial ultraviolet disinfection systems and commercial water
treatment. Our water treatment systems range from domestic residential
households to commercial water applications.
RainDance Water Systems is committed to providing proven water
treatment solutions that enable our customers to achieve their
well and city water filtration needs. We take pride in our products,
our customer service and our shipping procedure (which is our
specialty). To assure a safe and proper delivery for your new
water treatment equipment, we offer export crating and packaging
for all overseas orders. We can use your freight forwarder, ship
freight collect or we can find the best shipping rates from our
facility. For our domestic U.S. orders, we offer crating or pallet
packaging for a safe easy delivery). Our extensive customer database
is second to none.
Our customers include numerous residential households on well
and city water sources, commercial applications, business facilities
and farms throughout the United States, Venezuela, Spain, Africa,
Canada, Japan, U.K., Bahamas, Cayman Islands, Indonesia, Taiwan,
Singapore, Kabul, Afghanistan, and Malaysia.
A small sample of our customer base includes: The U.S. Army,
The U.S. Environmental Protection Agency (EPA), The U.S. Fish
and Wildlife Federation, The United States Coast Guard, Washington
St. National Park Service, San Diego State University, Arizona
State University, Palomar College, Golden Eagle Thoroughbred
Horse Farm, Buckridge Plantation and Stables, Advanced Marine
PTE., Quinlan Texas Elementary School, Fairbanks Farms, Hunter
Industries, Sonance Corp., Owens Brigam Medical, 1st Choice GMAC
Realty, Century 21 Realty, Coldwell Banker Realty, Austin Productions,
Fairfield Country Club, and Auer Precision Inc. Just to name
a few
|
