Water Treatment - Ultraviolet
Disinfection - UV Systems
The H2O Online Buyers Guide is
your single source online marketplace for consumers and professionals
wishing to access information on the latest desalination sea
water filters and commercial reverse osmosis filters offered
by RainDance Water Systems. This unique reference guide provides
a valuable and easily-accessed resource for consumers seeking
immediate information on commercial water filters and equipment
to enhance their place of business.
-
- High flow commercial UV Disinfection
Systems.
-
- Commercial ultraviolet disinfection
systems are specifically designed to treat microbiologically
contaminated ground or surface waters. These disinfection systems
offer a 4-log reduction (99.99%) in bacteria, virus and protozoan
cysts (specifically giardia lamblia and cryptosporidium). This
UV process is quick, simple, inexpensive and environmentally
friendly as it does not add anything to your water and creates
no disinfection by-products. the most ecological way of treating
your water.
-
- Applications include: manufacturing
plants, agriculture, private wells, camp grounds, hotels, bottlers,
aquaculture, hospitals, food, restaurants, breweries, water systems,
laboratories, marine, pharmaceutical, dairies and many other
commercial applications.
-
- How Ultraviolet Disinfection
System Works
- As water flows past the UV lamp(s)
in a UV disinfection system, microorganisms are exposed to Ultraviolet
light energy at a 253.7nm wave length. Ultraviolet light alters
the DNA material in cells so that bacteria, viruses, molds, algae
and other microorganisms can no longer reproduce. The microorganisms
are considered dead, and the risk of disease from them is eliminated.
These Ultraviolet Disinfection Systems are designed for commercial
& industrial applications. The process of UV Disinfection
is accomplished without adding any harmful chemicals to your
drinking water and does not distort the water or effect its pH
value. UV Disinfection has an effective kill rate of 99.99% of
most living microorganisms such as bacteria & viruses.
Effective in killing off bacteria and viruses such as:
- Coliform Bacteria
- Leptospira Interrogans (Infectious
Jaundice)
- Salmonella Typhosa (Typhoid
Fever)
- Bacteriophage (E. coli)
- Hepatitus Virus
- Chlorella Vulgaris
- Influenza Virus
- Legionella Pneumophila (Legionnaires'
Disease)
Commercial/Industrial
Ultraviolet UV System for hotel/motel, apartment and condominium
buildings, beverage, food processing,
schools, restaurants,
cafeterias, farms - dairy, cattle, chicken, swine, horse, and
more
- These high flow commercial/industrial
UV sterilizers are designed for applications requiring a 99.9%
reduction of bacteria and viruses.
- UV Pricing & Information

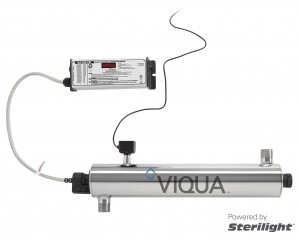

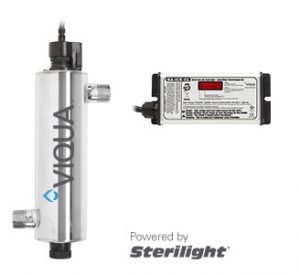

- UV Ultravioet systems provides treatment for flow rates of
10gpm to 40gpm delivering a 30 mJ/cm2 dose. Home owners can now
take drinking water into their own hands & avoid the worry
of Boil Water Advisories (BWA) that are constantly in the news.
This system offers a compact water treatment solution with a
small footprint for simple installation.The system has an electronic
controller which comes equipped with a simple LED screen for
visual management of the system's performance and ultimately
simple troubleshooting. The controller offers constant current,
universal input and full electrical certification. The UV reactor
is manufactured with 304SS and comes with either combination
inlet/outlet ports of 3/4FNPT / 1MNPT or 1
MNPT ports. The reactor has an axial flow design. These systems
are suited for home or light-commerical type applications with
constant flow demands. They are simple to install and maintain,
allowing for a simple water solution!
-

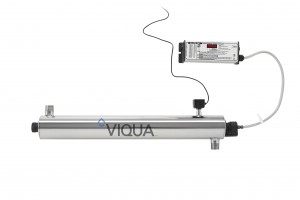

- Light Commercial Ultraviolet
Disinfection Systems 10GPM - 40GPM
|
ULTRAVIOLET
UV SYSTEMS
|
 |
 |
 |
|
|
Model # |
S8Q-PA |
S12Q-PA |
SC600 |
SC740 |
|
Flow Rate (gpm) |
10gpm |
15gpm |
32gpm |
40gpm |
|
Length |
35.4" |
37" |
30.7" |
39.4" |
|
Diameter |
2.6" |
3.5" |
3.5" |
3.5" |
|
Width |
2.5" |
3.5" |
Controller: 9.4" x 3.2"
x 2.5" |
Controller: 9.4" x 3.2"
x 2.5" |
|
Voltage |
100-240V./50-60Hz |
100-240V./50-60Hz |
100-240V./50-60Hz |
100-240V./50-60Hz |
|
Power Consumption (watts) |
46 |
48 |
73 |
88 |
|
Total lamp Watts |
37 |
39 |
65 |
80 |
|
Max. Operating Pressure |
125 psi |
125 psi |
125 psi |
125 psi |
|
Ambient Temperature |
36-104 F |
36-104 F |
36-104 F |
36-104 F |
|
Quartz Sleeve |
Yes |
Yes |
Yes |
Yes |
|
Inlet/Outlet Port Size |
3/4" MNPT |
- 1" MNPT / 3/4"
- FNPT "combo"
|
1" MNPT |
1" MNPT |
|
Number of UV Lamps |
1 |
1 |
1 |
1 |
|
Visual Lamp Failure Indicator
System |
Yes |
Yes |
Yes |
Yes |
|
Audible Lamp Failure Indicator
System |
Yes |
Yes |
Yes |
Yes |
|
Visual Power On |
Yes |
Yes |
Yes |
Yes |
|
Lamp Replacement Reminder |
Yes |
Yes |
Yes |
Yes |
|
Visual Lamp Life Remaining |
Yes |
Yes |
Yes |
Yes |
- Visual Total
- Running Time
|
Yes |
Yes |
Yes |
Yes |
|
Chamber Material |
304 Stainless Steel |
304 Stainless Steel |
304 Stainless Steel |
304 Stainless Steel |
- Price
|
- *UV-S8Q-PA: $625.00
- [Add
to Cart] [View
Cart]
|
- *UV-S12Q-PA: $725.00
- [Add
to Cart] [View
Cart]
|
- *UV-SC600: $995.00
- [Add
to Cart] [View
Cart]
|
- *UV-SC740: $1,195.00
- [Add
to Cart] [View
Cart]
|
|
Maintenance |
- Replace (1) UV Bulb
- Every 12 Months
|
- Replace (1) UV Bulb
- Every 12 Months
|
- Replace (1) UV Bulb
- Every 12 Months
|
- Replace (1) UV Bulb
- Every 12 Months
|
- Price
- Bulb Replacement
|
- 1 (S810RL) Bulb
x $81.00ea.
- [Add to Cart] [View
Cart]
|
- 1 (S36RL) Bulb
x $87.00ea.
- [Add to Cart] [View
Cart]
|
- 1 (S600RL-HO)
Bulb $95.00ea.
- [Add to Cart] [View
Cart]
|
- 1 (S740RL-HO)
Bulb 99.00ea.
- [Add to Cart] [View
Cart]
|
- Note: UV water system parameters:
Max Iron 0.3ppm, Max Hydrogen sulfide 0.05ppm, Max suspended
10ppm, Max Manganese 0.05ppm, Max Water hardness 7 gpg.
-
-

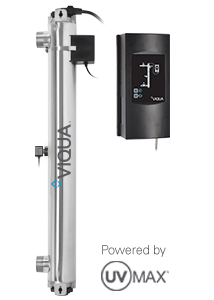

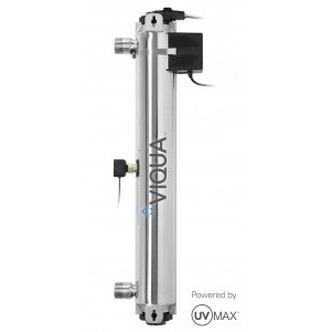

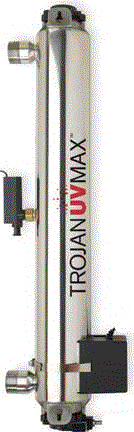

TrojanUVMax
High Flow Commercial / Industrial UV Series
- Go With More Flow - Flow rates reach up to 70gpm.
Twice the Power - A revolutionary lamp with twice the
output of current high-output lamps, giving you compact single-lamp
systems that are half the size of their predecessors
Intuitive Interface - Because a picture is worth a thousand
words
Simple Connections - With plug-and-play colour coded connections,
it's as easy as "connect the dots."
Twice the Life Expectancy - Our revolutionary new lamps
last an unprecedented two years, reducing maintenance requirements.
Cooler Water - The CoolTouch Fan significantly reduces
water temperature and does not waste water.
Simply Shocking - The plug-and-play solenoid is equipped
with a manual override to make shocking the water line easy.
Easy Quarter-Twist Assembly - A quarter-twist to the positive
stop and you're done. No tools, no risk of overtightening.
Integrated Ground - Like a standard plug - no more grounding
wires!
Combo Parts - Flexibility to connect to either 1-1/4"
NPT or 1" FNPT.
UV Intensity Monitor With Diagnostic Test - With the push
of a button you can confirm the proper operation of the sensor.
- Commercial/Industrial Ultraviolet
UV Systems
- water purification, hotel/motel,
apartment and condominium buildings, beverage, food processing,
schools, restaurants, cafeterias, farms - dairy, cattle, chicken,
swine, horse, and more.

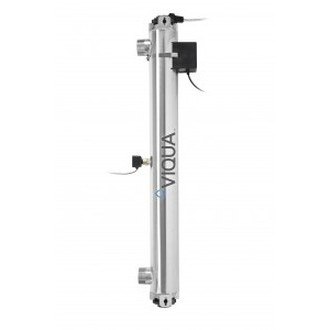

- TrojanUVMaxtm
- High Output Systems
W/ UV Intensity Monitors
|
|
|
|
Model # |
650658 J PLUS |
660002-R K PLUS |
|
Flow Rate (gpm) @ 30 mJ/cm2 dose |
*45gpm |
**70gpm |
|
Length |
41" |
41" |
|
Diameter |
4" |
4" |
|
Voltage |
120/240V./50-60Hz |
120/240V./50-60Hz |
|
Power Consumption (watts) |
230 |
300 |
|
Total lamp Watts |
200 |
270 |
|
Max. Operating Pressure |
100 psi |
100 psi |
|
Ambient Temperature |
32-104 F |
32-104 F |
|
Inlet/Outlet Port Size |
- 1.25" NPT / 1"
- FNPT "combo"
|
- 2"
|
|
Number of UV Lamps |
1 |
1 |
- Easy Color Coded
- Plug and Play Connections
|
Yes |
Yes |
|
CoolTouch Fan |
Yes |
Yes |
|
UV Intensity Monitor With Diagnostic
Test |
Yes |
Yes |
|
Rated Service Lamp Life |
2 Years |
2 Years |
|
Audible Alarm Mute Button |
Yes |
Yes |
|
New Lamp Button |
Yes |
Yes |
|
Ballast Operation Indicator |
Yes |
Yes |
|
Lamp Age Indicator |
Yes |
Yes |
|
Lamp Operation Indicator |
Yes |
Yes |
- Fan Operation Indicator
|
Yes |
Yes |
|
Sensor Reading Indicator |
Yes |
Yes |
|
Chamber Material |
316L. SST |
316L. SST |
- Commercial
UV Price
|
- *650658 J PLUS: $2,250.00
- [Add
to Cart] [View
Cart]
|
- **660002-R K PLUS: $3,750.00
- [Add
to Cart] [View
Cart]
|
|
Maintenance |
- Replace UV Bulb
- Every 2 Years
|
- Replace UV Bulb
- Every 2 Years
|
- Bulb Replacement
Price
|
- 1 (602856) Bulb
x $199.00ea.
- [Add to Cart] [View
Cart]
|
- 1 (602856) Bulb
x $199.00ea.
- [Add to Cart] [View
Cart]
|
- * All flow rate recommendations
are based on 85% UV transmittance (UVT) and end of lamp life.
* Inlet/outlet size restricts flow to 45 gpm and the dose will
be 39mJ/cm2. ** Inlet/outlet size restricts flow to 70 gpm and
the dose will be 39mJ/cm2.
- Two or more units can
also be plumbed in parallel where even higher flow rates are
required.
RainDance Water Systems offers a full spectrum of commercial
reverse osmosis systems ranging from 200 gallons per day to 25,000
gallons per day. Custom reverse osmosis systems available with
capacities up to 1,000,000 gallon per day. Please review our
selection below.
- Reverse Osmosis applications
include:
- Commercial / Industrial Water
Treatment From 150gpd to 1,000,000gpd
- Agriculture-Dairy, Cattle, Horse,
Swine
- Green Houses- Orchards, Groves
- Food & Beverage Industry
- Pharmaceutical
- Electronic Industry
- Process Water
- Chemical Industry
- Electroplating Industry
- Electrical Power Generating
- Polymer Solutions
- And many More.......
Want more reverse osmosis product
info and want it fast? Click on our water treatment systems below
for complete pricing and information or E-mail: sales@h2obuyersguide.com
:
- LCRO
Series - Light commercial
reverse osmosis water filters
- RDWS-SS - Light ro filters compact in size ranging
from 500 to 1000 gpd
- LCX
Series - Compact ro systems
ranging from 1000 to 2000 gallon per capacities
- TV
Series - reverse osmosis
systems ranging from 2000 to 12,000 gallon per day capacities
- Skid
Mount RO Series - Complete
skid mount reverse osmosis units ranging from 2000gpd ++
- Agriculture
Water Treatment - Complete
selection of water treatment equipment for the ranch and farm
- Nano
Filtration - Nanofiltration
water separation systems from 1500 to 3000gpd
- Commercial Water Services - If you have an existing commercial
water softener, reverse osmosis, or industrial water treatment
system that is need of repair, service, or maintenance please
use our Service
Contact Form and a professional representative will contact
you by e-mail or phone within 24 hours of receiving your request.
Please address any special requests you may have with our representative
at that time.
- Ordering your new commercial
water treatment system has never been easier. If you have a specific
question before ordering please call toll free 1-877-788-8387
or e-mail our staff
for a fast informative response.
-
- Customer Assurance - RainDance
Water Systems has become a stable and reliable name in the water
treatment industry. We take great measures to assure our customers
the best quality, dependability, service, and reliability. Why
Raindance Water Systems? We offer the following:
- Member Ramona Chamber Of Commerce
- Secure online ordering on most
systems or call toll free 1-877-788-8387
- We know water treatment! Quality
Equipment - Knowledge - Superior Customer Service
- Technical and Installation support
available via 1-760-788-8387, fax 760-896-6999, e-mail: support@raindancewatersystems.com
About RainDance Water Systems:
RainDance Water Systems can assist you in all of your residential
and commercial water treatment needs. There's no need to go anywhere
else. With over 80 years of combined experience in the water
treatment business our resources can quickly & accurately
answer all of your water filtration questions. We offer proven
systems for your residential and commercial water treatment applications.
Residential water treatment can be found on our main company
website @ www.raindancewatersystems.com
To ensure our customers receive the most economical, dependable,
and environmentally friendly solutions, our resources include
engineers and water treatment professionals who utilize virtually
all known water treatment processes. This would include: commercial reverse osmosis,
sea water desalination filters,
water store equipment,
water softening, iron
filters, complete well water filtration, city water filtration,
commercial ultraviolet disinfection systems and commercial water
treatment. Our water treatment systems range from domestic residential
households to commercial water applications.
RainDance Water Systems is committed to providing proven water
treatment solutions that enable our customers to achieve their
well and city water filtration needs. We take pride in our products,
our customer service and our shipping procedure (which is our
specialty). To assure a safe and proper delivery for your new
water treatment equipment, we offer export crating and packaging
for all overseas orders. We can use your freight forwarder, ship
freight collect or we can find the best shipping rates from our
facility. For our domestic U.S. orders, we offer crating or pallet
packaging for a safe easy delivery). Our extensive customer database
is second to none.
Our customers include numerous residential households on well
and city water sources, commercial applications, business facilities
and farms throughout the United States, Venezuela, Spain, Africa,
Canada, Japan, U.K., Bahamas, Cayman Islands, Indonesia, Taiwan,
Singapore, Kabul, Afghanistan, and Malaysia.
A small sample of our customer base includes: The U.S. Army,
The U.S. Environmental Protection Agency (EPA), The U.S. Fish
and Wildlife Federation, The United States Coast Guard, Washington
St. National Park Service, San Diego State University, Arizona
State University, Palomar College, Golden Eagle Thoroughbred
Horse Farm, Buckridge Plantation and Stables, Advanced Marine
PTE., Quinlan Texas Elementary School, Fairbanks Farms, Hunter
Industries, Sonance Corp., Owens Brigam Medical, 1st Choice GMAC
Realty, Century 21 Realty, Coldwell Banker Realty, Austin Productions,
Fairfield Country Club, and Auer Precision Inc. Just to name
a few
|
